Features:

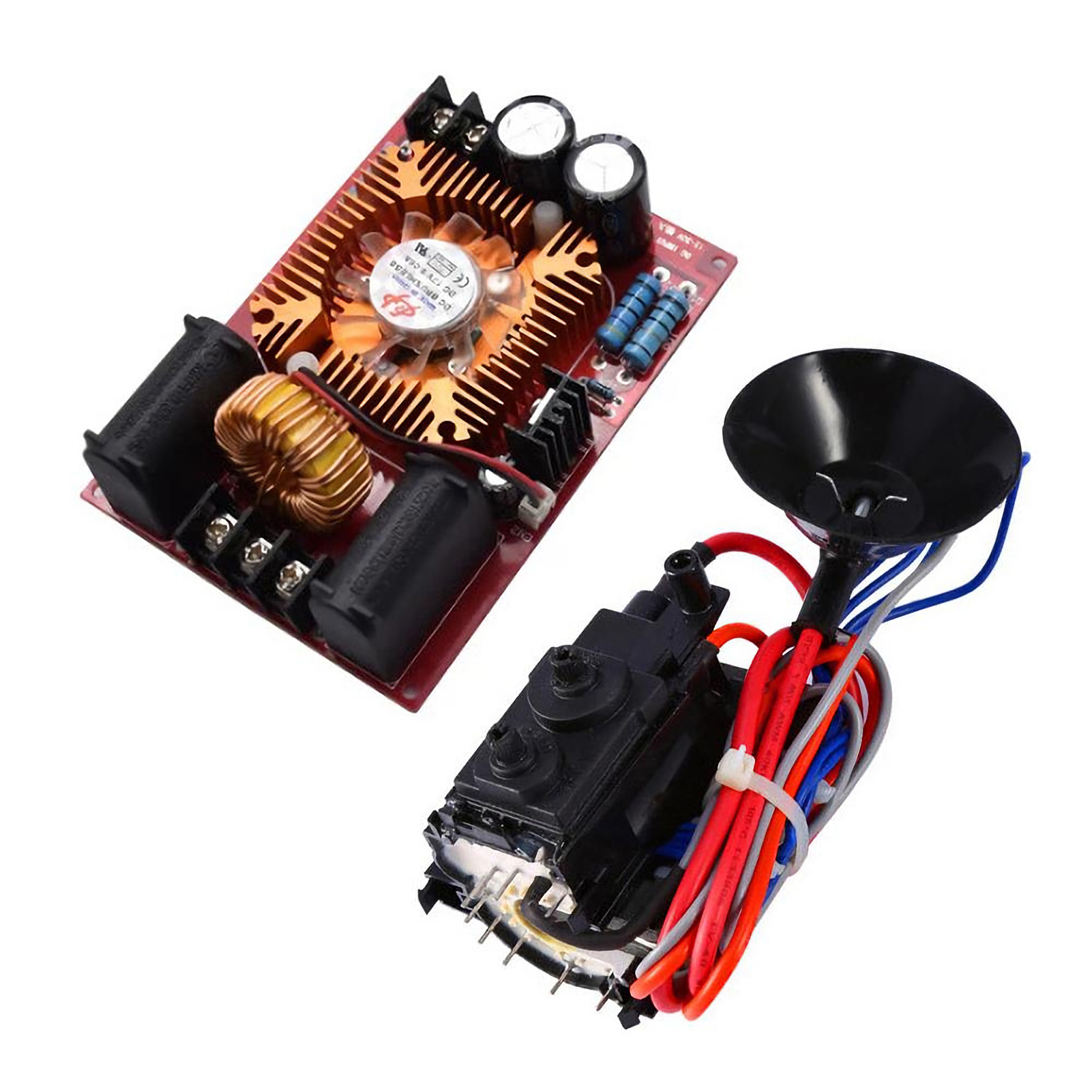

Flyback drive circuit is used to drive ignition coil. Zero voltage switch is also known as "ZVS circuit"
The high voltage generator drive board has DC12-30V high voltage input.
Package including a flyback driver and a ignition coil, easy to set up and use.
With consistent parameters, small error and more stable performance.
Specifications:
Material: PCB
Input Current: 10A above (15~20A recommended)
Input Voltage: DC12-30V
Weight: 395g / 13.93oz
Size: 11 * 8 * 4cm / 4.33 * 3.15 * 1.57in
Packing List:
1 * Flyback Driver
1 * Ignition Coil
Flyback drive circuit is used to drive ignition coil. Zero voltage switch is also known as "ZVS circuit"
The high voltage generator drive board has DC12-30V high voltage input.
Package including a flyback driver and a ignition coil, easy to set up and use.
With consistent parameters, small error and more stable performance.
Specifications:
Material: PCB
Input Current: 10A above (15~20A recommended)
Input Voltage: DC12-30V
Weight: 395g / 13.93oz
Size: 11 * 8 * 4cm / 4.33 * 3.15 * 1.57in
Packing List:
1 * Flyback Driver
1 * Ignition Coil
